The automatic banner welding machine is designed to welding outdoor
materials.
The automatic welding machine can weld advertising inkjet fabric,
inkjet cloth, light box cloth, thick PVC cloth, mesh cloth,
tarpaulin and other PVC, PE, DHPE, LDPE, EVA, PP plastic materials
that can be hot melted.
• It also can avoid leakage.
• It is small, light and easy to operate.
• It uses advanced PID control technology, and adjust the power to
make the temperature more constant
automatically, the fluctuation is within 1 degrees. This function
can make the welding result stronger.
• It is equipped with temperature feedback sensor. The sensor can
always monitoring the temperature of the outlet to keep a constant
temperature.

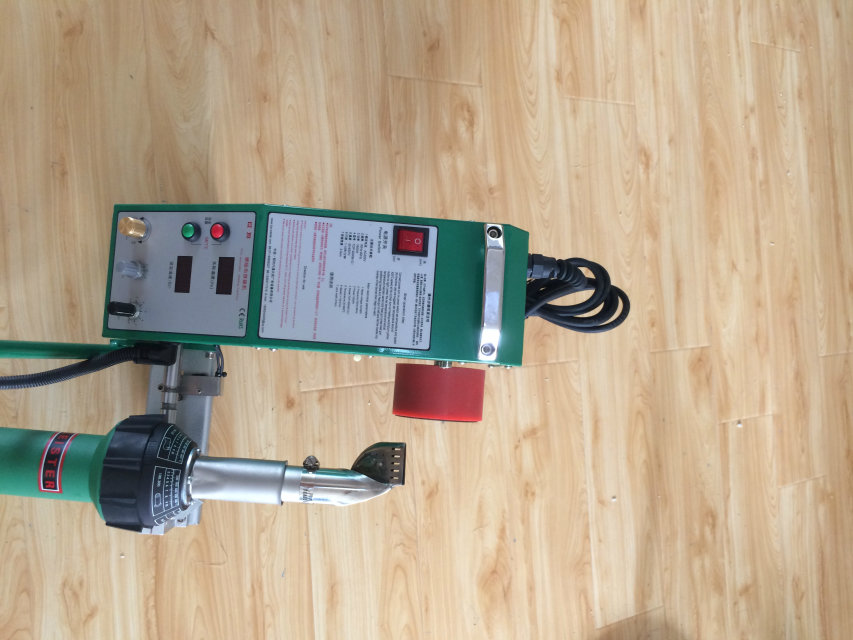

Character for TOP3400B pvc flex banner hot air welding machine:
► Equipped 3400W Leister heat gun from Swiss, lifetime can reach 6-8
years ► Has landing gear, Handrail, Laser, Light, operation more
convenient ► Digital display: Set &Actual temperature, walk speed can see
clearly. ► Adopt digital constant temperature technology, temperature
fluctuation±1 degree ► Big power, Strong wind, welding speed can reach 15m/min ► Auto-Dormancy Function, protect heating element well, let machine
lifetime longer |
Operation Step :
1. Make the cloth for seaming flat and put it underneath. Fix both
ends by adhesive tape or something else.
2. The overlap width of the two pieces is about 3 mm, the width of
the nozzle of hot seaming machine.
3. Put the machine nozzle between two overlap pieces.
The press wheel should be at left side of nozzle. The nozzle also
need align with side of upper piece of cloth.
4. Switch on the motor power and then adjust speed.
5. Turn on the movement switch.
6. Press heating power key to adjust temperature.
7 Turn the bar by anticlockwise to fix the position to startup
automatic movement. The machine will go along with the overlap path
by itself.
8. Turn the bar by clockwise to cease the automatic work.
9. The operator should control the moving direction and make sure
the nozzle connect both with upper and under piece cloth.
Specification:
Welding Power : 3600 W
Welding Voltage : 220-240V
Welding Temperature : 350-400 degree
Welding Speed : 6 -15 meters / min
Welding Thickness : 0.22-2 mm
Welding Width : 2-5 cm
Welding Frequency : 50-60 HZ
Welding Warranty : one year
Welding heat gun : Import Original Leister Hot air gun from Swiss
FAQ :
1. Q : What's the Function ?
A : The Function is : Welding PVC / Flex banner , plastic and other
materials can be hot melt .
2. Q : What's the M OQ ?
A : The MOQ is one set of Banner Welding Machine .
3. Q : What's the Hot air gun ?
A : It is use Original 3600W Leister Hot Air Gun , high power and
long life , can used 6-8 years .
4. Q : How long is the Warranty period ?
A : The warranty is one year .
5. Q : How can i pay ?
A : Our company accept : T/T , Western union , Paypal .
