This machine is more suited to fast welding of large banners. More
details as below :
- It also can avoid leakage .
- It is small, light and easy to operate .
- It uses advanced PID control technology, and adjust the power to
make the temperature more constant
automatically, the fluctuation is within 1 degrees. This function
can make the welding result stronger .
- It is equipped with temperature feedback sensor. The sensor can
always monitoring the temperature of the outlet to keep a constant
temperature .
Specification:
♦ Welding Power : 3600 W
♦ Welding Voltage : 220-240V
♦ Welding Speed : 6 -15 meters / min
♦ Welding Frequency : 50-60 HZ
♦ Welding Thickness : 0.22-2 mm
♦ Welding Width : 2-5 cm
♦ Welding Warranty : one year
♦ Welding heat gun : Import Original Leister Hot air gun from Swiss
♦ Welding Temperature : 350-400 degree
Operation Step :
| 1. Make the cloth for seaming flat and put it underneath. Fix both
ends by adhesive tape or something else. |
| 2. The overlap width of the two pieces is about 3 mm, the width of
the nozzle of hot seaming machine. |
3. Put the machine nozzle between two overlap pieces.
The press wheel should be at left side of nozzle. The nozzle also
need align with side of upper piece of cloth. |
| 4. Switch on the motor power and then adjust speed. |
| 5. Turn on the movement switch. |
| 6. Press heating power key to adjust temperature. |
| 7. Turn the bar by anticlockwise to fix the position to startup
automatic movement. The machine will go along with the overlap path
by itself. |
| 8. Turn the bar by clockwise to cease the automatic work. |
| 9. The operator should control the moving direction and make sure
the nozzle connect both with upper and under piece cloth. |
|

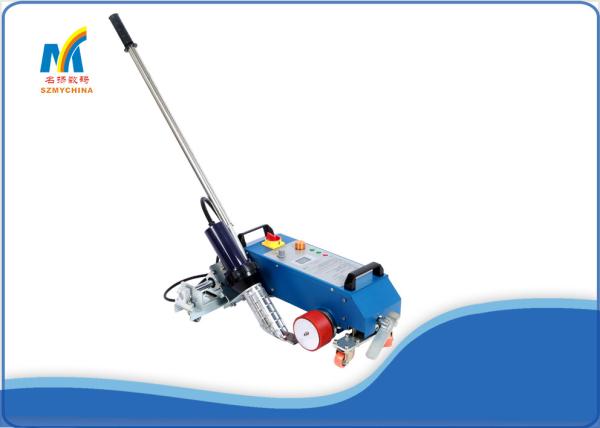

Character for TOP3400C PVC Flex Banner Hot Air Welding Machine:
► Equipped 3400W Leister heat gun from Swiss, lifetime can reach 6-8
years
► Has landing gear, Handrail, Laser, Light, operation more convenient
► Auto-Dormancy Function, protect heating element well, let machine
lifetime longer
► Big power, Strong wind, welding speed can reach 15m/min
► Digital display: Set &Actual temperature, walk speed can see
clearly.
► Adopt digital constant temperature technology, temperature
fluctuation±1 degree
F A Q :
1. Q : How long can i use the Heat gun ?
A : This Machine used Import Original Leister heat gun , it can use
6-8 years
2. Q : Does it Automatic Work ?
A : Yes . It is automatic welding , Speed can be controlled ,and
with a long handle .
3. Q : What's the advantages ?
A : It is 3600W high power welding machine , and used the original
Leister heat gun ,longer life .
4. Q : What's the MOQ ?
A : The MOQ is one set of Welding Machine
5. Q : How can i pay ?
A : Our company accept : T/T ,Western Union ,Paypal .
Any questions or demand , Please send your Inquiry Details at the
below , Thank you !
