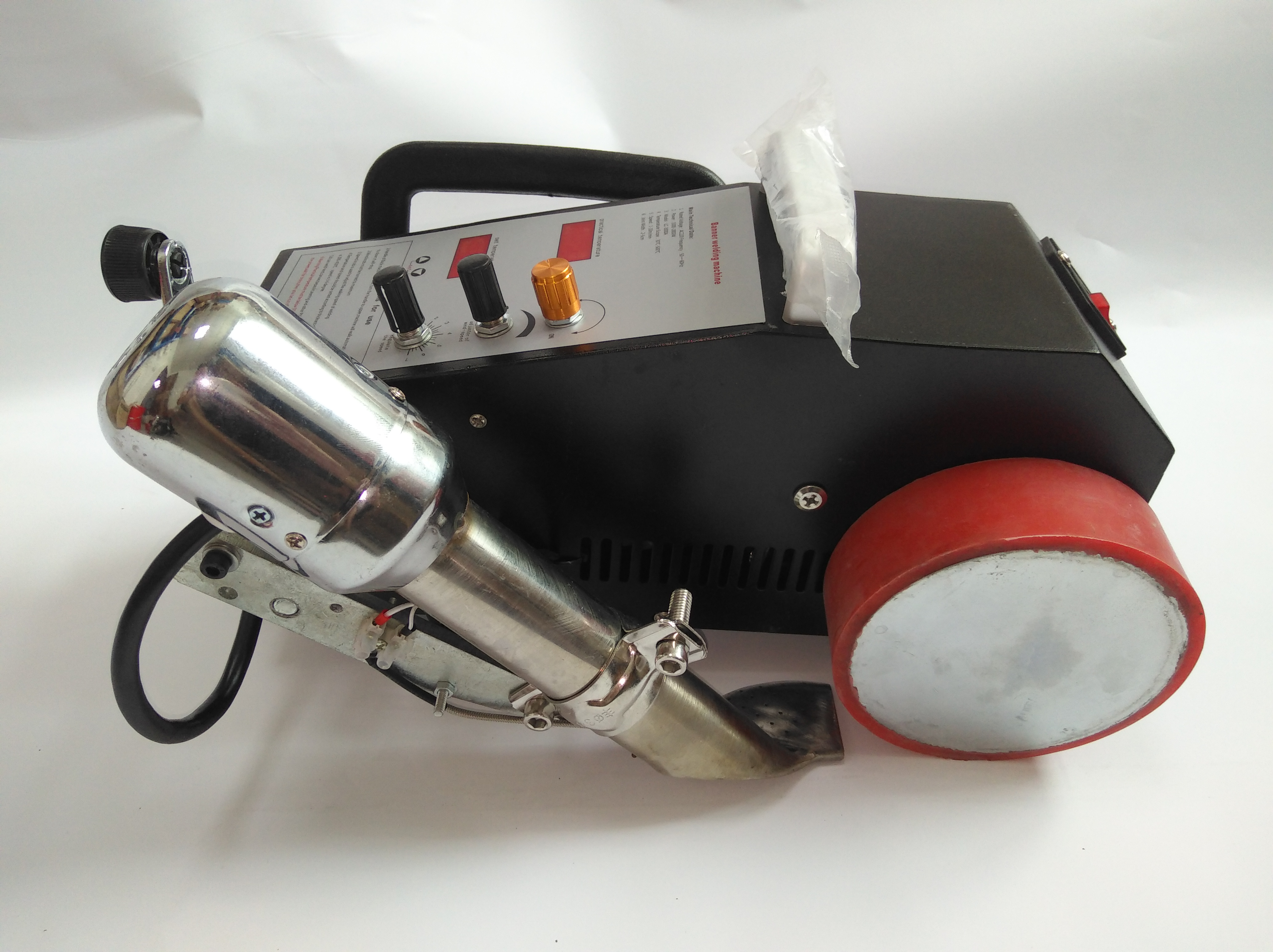

110V Handy Vinyl Banner Welding Machine Hot Air With Temperature Sensor

    Buy cheap 110V Handy Vinyl Banner Welding Machine Hot Air With Temperature Sensor from wholesalers

    Buy cheap 110V Handy Vinyl Banner Welding Machine Hot Air With Temperature Sensor from wholesalers
    • Buy cheap 110V Handy Vinyl Banner Welding Machine Hot Air With Temperature Sensor from wholesalers

    110V Handy Vinyl Banner Welding Machine Hot Air With Temperature Sensor

    Ask Lasest Price
    Brand Name : MingYang
    Model Number : MY-BW-A
    Certification : CE
    Price : Hidden
    Payment Terms : Western Union , T/T , Paypal
    Supply Ability : 98891 sets / month
    Delivery Time : 3-5 working days
    MOQ : one set of Banner welding machine
    • Product Details
    • Company Profile

    110V Handy Vinyl Banner Welding Machine Hot Air With Temperature Sensor


    Wholesale 110V Automatic Hot Air Welding Machine Of Flex /


    Vinyl Banner


    Application field :


    Use for weld PVC, PE and other materials can be hot melt, like : Flex, PVC cloth , etc



    Advantage :


    No need glue, Just use hot air to welding materials , low cost


    Temperature, speed, fan motor speed are adjustable


    Welder nozzle has a sensor, can make the true temperature accurately


    High welding quality and efficient




    Main technical details :



    Machine name: Flex Banner Welding Machine


    Warranty: One year


    MOQ: One set of banner welding machine


    Rated voltage: AC110-240V


    Frequency: 50-60HZ


    Power: 1000-3000W


    Temperature scope: 0-500℃


    Speed scope: 1-15m/min


    Dimension: 41*25*20cm


    Weight: 15kg


    Splicing width: 2-4cm


    Welding Thickness: 0.22-2mm


    Welding width: 2-4cm


    Welder wire: 10 meters


    Welder wheel: Aluminum wheel





    Operation Step :



    step 1

    Before hemming or welding, leave 30-40mm wide overlap edge for connection the two disjunct surface pieces, immobilize both ends of each disjunct pieces with something such as stick belt or clamp

    step 2

    Turn on the power, according to quality and thickness of the PVC banner, consider the ground circumstance, set the proper termperature and speed, adjust the suitable hot-air blowing rate, wait for machine hot up around 2 minutes

    step 3

    Bring up the machine, place the rubber wheel at the end of the overlap edge

    step 4

    Turn the handle to left down, insert the welder nozzle into the gap of two overlap pieces, then the machine will moving and seaming automatic

    step 5

    During welding, use the gripe to align the moving direction, let the upper piece edge be in touch with the inner side of the welder nozzle

    step 6

    After the machine go pass the overlap edge to the end, the two disjunct pieces will be joined together, then turn the welder handle to right, it will stop moving

    step 7

    Turn off the heater switch, wait the gun come to cold, then turn off the power supply is ok




    Notice:


    To prolong the electrothermal heater, after work it is strongly advice that cooling the heater at first, then turn off the power 5 minutes later. In case of the power suddenly be off, should handle the welding gun away firstly, and close down the temperature knob, nextly consider the problem of power supply.


    To get better satisfied bonding effect, the ground of the overlap pieces should be smoothly, hard and heat resistive. We suggest that the operator may do some more test and practice using some samples of the pieces to get the suitable speed and temperature and hot-air blowing rate before operate it for seaming formally.




    FAQ :


    1. Q : What's the Function ?


    A : The Function is : Welding PVC / Flex Banner , Plastic and other materials can be hot melt .


    2. Q : What's the MOQ ?


    A : The MOQ is one set of Welding Machine .


    3. Q : Is it automatic work ?


    A : yes , It is automatic welding .


    4. Q : How long is the warranty period ?


    A : The warranty is one year .


    5. Q : How can i pay ?


    A : Our company accept : T/T , Western union , Paypal .


    6. Q : What time will delivery the Banner welding machine after payment ?


    A : We will delivery the Banner welding machine in 3-5 working days after you payment .
