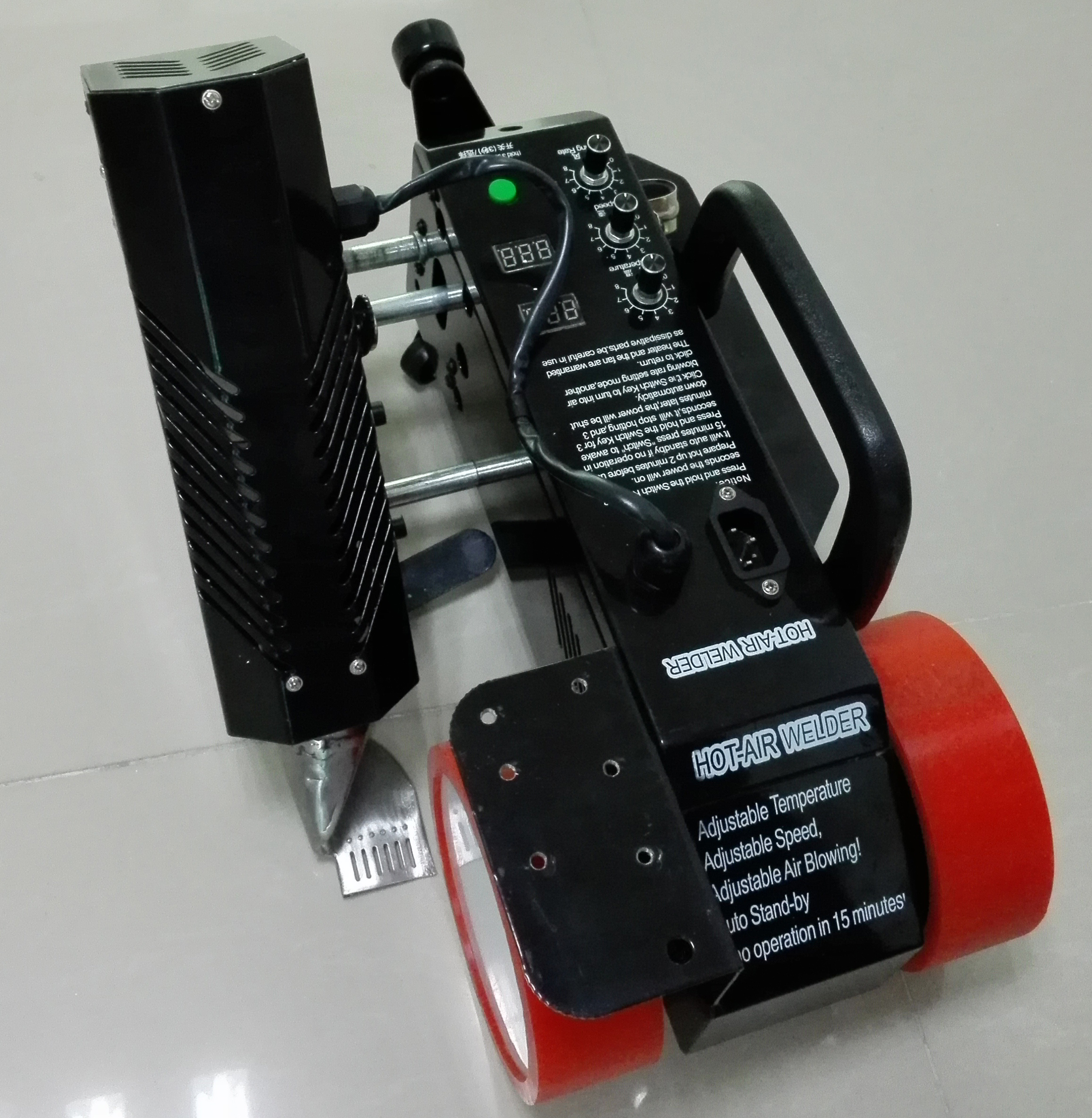

220V Hot Air Vinyl PVC Banner Welder Machine Automatic 20-500 Degree

    Buy cheap 220V Hot Air Vinyl PVC Banner Welder Machine Automatic 20-500 Degree from wholesalers

    Buy cheap 220V Hot Air Vinyl PVC Banner Welder Machine Automatic 20-500 Degree from wholesalers
    • Buy cheap 220V Hot Air Vinyl PVC Banner Welder Machine Automatic 20-500 Degree from wholesalers

    220V Hot Air Vinyl PVC Banner Welder Machine Automatic 20-500 Degree

    Ask Lasest Price
    Brand Name : MingYang
    Model Number : MY-BW-C
    Certification : CE
    Price : Hidden
    Payment Terms : Western Union , T/T , Paypal
    Supply Ability : 9000 sets / month
    Delivery Time : 3-5 working days
    MOQ : one set of Banner welding machine
    • Product Details
    • Company Profile

    220V Hot Air Vinyl PVC Banner Welder Machine Automatic 20-500 Degree


    220V Low Cost Hot Air Vinyl Flex Banner Welding


    Machine / Automatic Welder Ma chine


    Application field :


    Leister Plastic Welder Use for weld PVC, PE and other materials can be hot melt, like : Flex, PVC cloth , etc


    Advantage :


    No need glue, Just use hot air to welding materials , low cost


    Welding Temperature, speed, fan motor speed are adjustable


    Welder nozzle has a sensor, can make the true temperature accurately


    High welding quality and efficient .


    Easy to operation and good welding effect


    Main technical details :



    Machine name: Vinyl Flex Banner Welding Machine / Automatic Hot Air Welder Machine


    Warranty: One year


    MOQ: One set of banner welding machine


    Rated voltage: AC110-240 V


    Frequency: 50-60 HZ


    Power: 1800 W


    Temperature scope:10-500℃


    Speed scope: 3-15m/min


    Dimension: 480*320*330 mm


    Weight: 10 kg


    Splicing width: 2-4 cm


    Welding Thickness: 0.22-2 mm


    Welding width: 2-4 cm


    Welder wire: 10 meters (the longest)


    Welder wheel: Aluminum wheel



    Operation Step :



    step 1

    Before hemming or welding, leave 30-40mm wide overlap edge for connection the two disjunct surface pieces, immobilize both ends of each disjunct pieces with something such as stick belt or clamp

    step 2

    Turn on the power, according to quality and thickness of the PVC banner, consider the ground circumstance, set the proper termperature and speed, adjust the suitable hot-air blowing rate, wait for machine hot up around 2 minutes

    step 3

    Bring up the machine, place the rubber wheel at the end of the overlap edge

    step 4

    Turn the handle to left down, insert the welder nozzle into the gap of two overlap pieces, then the machine will moving and seaming automatic

    step 5

    During welding, use the gripe to align the moving direction, let the upper piece edge be in touch with the inner side of the welder nozzle

    step 6

    After the machine go pass the overlap edge to the end, the two disjunct pieces will be joined together, then turn the welder handle to right, it will stop moving

    step 7

    Turn off the heater switch, wait the gun come to cold, then turn off the power supply is ok



    Notice:


    To prolong the electrothermal heater, after work it is strongly advice that cooling the heater at first, then turn off the power 5 minutes later. In case of the power suddenly be off, should handle the welding gun away firstly, and close down the temperature knob, nextly consider the problem of power supply.


    To get better satisfied bonding effect, the ground of the overlap pieces should be smoothly, hard and heat resistive. We suggest that the operator may do some more test and practice using some samples of the pieces to get the suitable speed and temperature and hot-air blowing rate before operate it for seaming formally


    FAQ :


    1. Q : What's the Function ?


    A : The Function is : Welding PVC / Flex Banner , Plastic and other materials can be hot melt .


    2. Q : What's the MOQ ?


    A : The MOQ is one set of Welding Machine .


    3. Q : Is it automatic welding ?


    A : yes , It is automatic welding banner .


    4. Q : How long is the warranty period ?


    A : The warranty is 12 months .


    5. Q : How can i pay ?


    A : Our company accept : T/T , Western union , Paypal .


    6. Q : What time will delivery the Banner welding machine after payment ?


    A : We will delivery the Banner welding machine in 3-5 working days after you payment .


    Company Information :


    Shen zhen Ming Yang Digital Technology Co.,Ltd


    We are a Professional Export Trade Company , With 7 years experience , Sale many kinds of machine and materials about the Advertising Industry .


    We Assure you :


    With good quality Banner Welding Machine


    Offer Best Price to you


    Arrange the Fast delivery


    Provide good after-sales service
