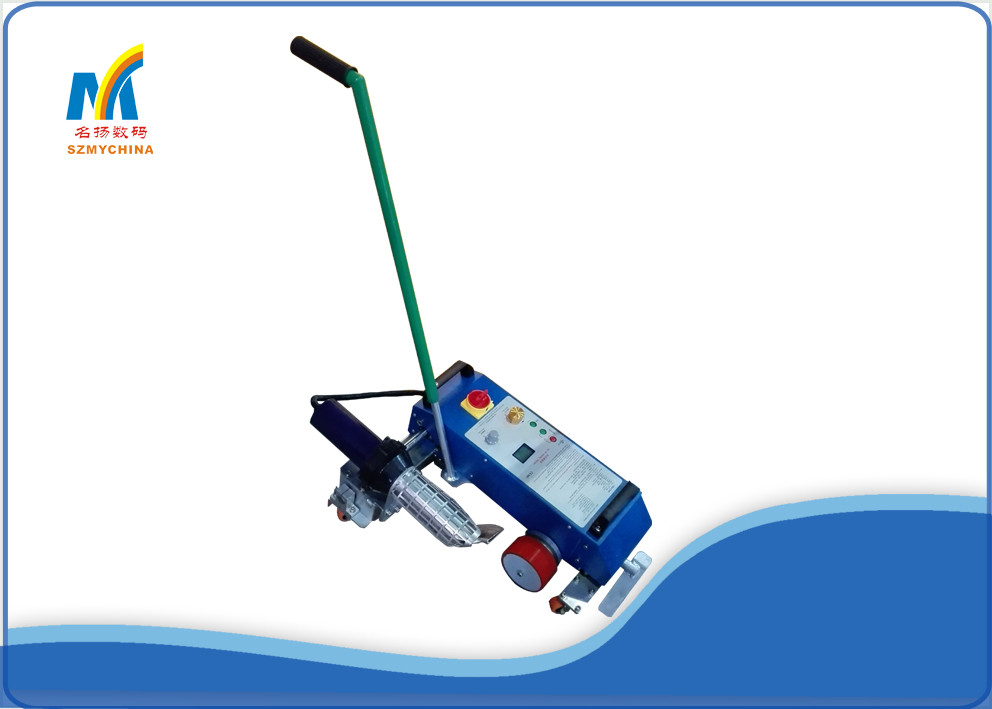

The automatic banner welding machine is designed to welding outdoor
materials.
The automatic welding machine can weld advertising inkjet fabric,
inkjet cloth, light box cloth, thick PVC cloth, mesh cloth,
tarpaulin and other PVC, PE, DHPE, LDPE, EVA, PP plastic materials
that can be hot melted.
This machine is more suited to fast welding of large banners. More
details as below :
- It also can avoid leakage .
- It is small, light and easy to operate .
- It uses advanced PID control technology, and adjust the power to
make the temperature more constant
automatically, the fluctuation is within 1 degrees. This function
can make the welding result stronger .
- It is equipped with temperature feedback sensor. The sensor can
always monitoring the temperature of the outlet to keep a constant
temperature .
Specification:
| Machine Name | Good quality Flex Banner Welding Machine |
| MOQ | One set |
| Warranty | One year |
| Power | 3600W |
| Voltage | 110V/240V |
| Frequency | 50-60HZ |
| Speed | 6-15m/min |
| Width | 2-5 cm |
| Thickness | 0.22-2 mm |
| Temperature scope | 20-700 degree |
| Hot air gun | LST 3400W hot air gun |
| Welding type | Automatic welding |
| Is handle | Yes |
| Weight | 34 kg |
| Size | 620*480*380 mm |
| Packing | Wooden case |
Operation Step :
1. Make the cloth for seaming flat and put it underneath. Fix both ends by adhesive tape or something else.
2. The overlap width of the two pieces is about 3 mm, the width of the nozzle of hot seaming machine.
3. Put the machine nozzle between two overlap pieces.
The press wheel should be at left side of nozzle. The nozzle also
need align with side of upper piece of cloth.
4. Switch on the motor power and then adjust speed.
5. Turn on the movement switch.
6. Press heating power key to adjust temperature.
7 Turn the bar by anticlockwise to fix the position to startup
automatic movement. The machine will go along with the overlap path
by itself.
8. Turn the bar by clockwise to cease the automatic work.
9. The operator should control the moving direction and make sure
the nozzle connect both with upper and under piece cloth.
Character for Hot Air Flex Banner Welding Machine:
►
►
►
►
►
►
| Equipped 3400W Leister heat gun from Swiss, lifetime can reach 6-8
years
Has landing gear, Handrail, Laser, Light, operation more convenient
Auto-Dormancy Function, protect heating element well, let machine
lifetime longer
Big power, Strong wind, welding speed can reach 15m/min
Digital display: Set &Actual temperature, walk speed can see
clearly.
Adopt digital constant temperature technology, temperature
fluctuation±1 degree |
F A Q :
1. Q : How long can i use the Heat gun ?
A : This Machine used Import Original Leister heat gun , it can use
6-8 years
2. Q : Does it Automatic Work ?
A : Yes . It is automatic welding , Speed can be controlled ,and
with a long handle .
3. Q : How can i pay ?
A : Our company accept : T/T ,Western Union ,Paypal .
4. Q : What's the MOQ ?
A : The MOQ is one set of Welding Machine
5. Q : What's the advantages ?
A : It is 3600W high power welding machine , and used the original
Leister heat gun ,longer life .
